position: 首页 > prodcut > TIG Welding Machine
TIG Welding Machine
|
|

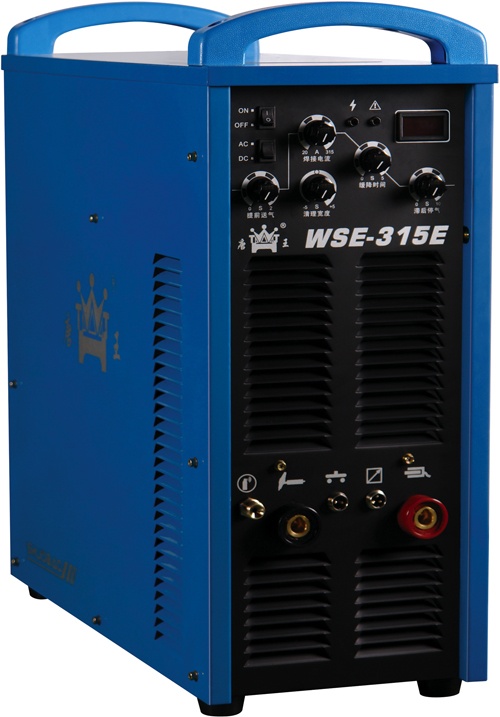

product name: WSE-315E
|
WSE-315E Equipment Features
■ IGBT soft switch technology; good reliability, high efficiency and
portable.
■ Soft switch technology effectively reduce the impact for power
grid and electronic device.
■ Strong ability in adapting wide power grid; energy saving.
■ Easy operation thanks to simple operation panel.
■ Easy ignition, good arc stiffness and heat concentrated.
Area of Application
■ Suitable for the welding of aluminum, magnesium/magnesium
alloy, stainless steel, alloy steel, carbon steel and other non-ferrous
metal etc.
WSE-315E Technical Data
| Model | WSE-315E |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) | 13.5 |
| Rated inputpower(KVA) | 8.9 |
| Open circuit voltage(V) | 45 |
| Rated welding current (A) | 20-315 |
| Pulse Frequency (Hz) | - |
| Duty ratio (%) | 10-90 |
| Cleaning width (%) | 20-80 |
| Rated duty cycle (%) | 60 |
| Dimension L×W×H (mm) | 560×260×670 |
| Net Weight (Kg) |
37 |
