position: 首页 > prodcut > TIG Welding Machine
TIG Welding Machine
|
|

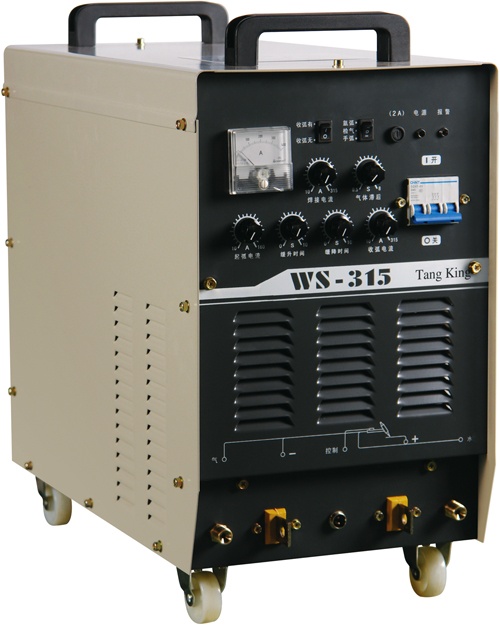

product name: WS-315
|
Equipment Features
■ Digital circuit control, stable and reliable.
■ Excellent dynamic characteristics curve, easy arc ignition, low-spatter welding, low noise.
■ Under TIG welding, easy to use thanks to adjustable ignition/liftarc current and down-slope time.
■ Completed automatic self-protection function.
■ With wireless remote control device, easy current adjustment, especially suitable for long
distance and high-altitude operation.
■ Small, light and easy to be moved.
Area of Application
■ Suitable for the welding of carbon steel, stainless steel, copper, titanium, etc.
WS-315 Technical Data
| Model | WS-315 |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) |
16 |
| Rated inputpower(KVA) |
10.5 |
| Open circuit voltage(V) |
75 |
| Rated welding current (A) |
18-315 |
| Rated duty cycle (%) | 60 |
| Efficiency (%) | 87 |
| Dimension L x W x H (mm) | 510×320×550 |
| Net Weight (Kg) |
40 |
