TIG Welding Machine
|
|

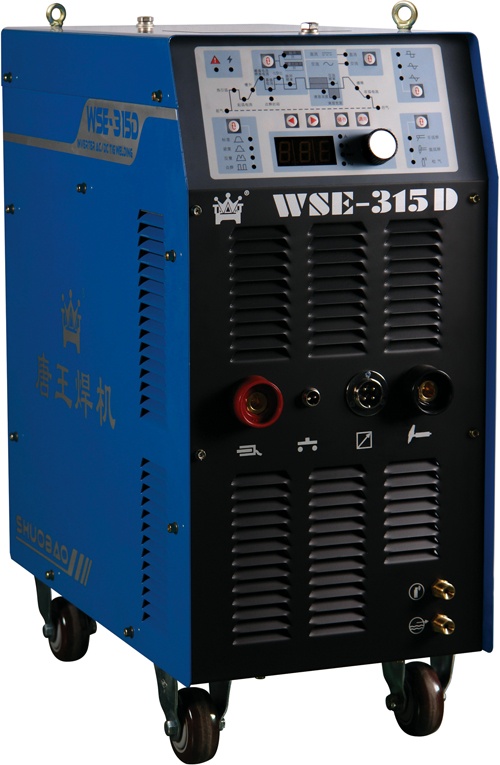

product name: WSE-315D
|
WSE-315D Equipment Features
■ Inverter IGBT technology.
■ Full digital control circuit ensures high reliability.
■ Equipped with AC output waveform selection and spot welding.
■ AC/DC Pulse function, realizing both-side molding under single side welding.
■ With AC/DC TIG, excellent weld, deep penetration and less electrode consumption.
■ New smart digital panel design for fine adjustment.
■ With over-current and over-heat protection.
Area of Application
■ Suit for the welding of aluminum, magnesium/magnesium alloy; stainless steel, low carbon steel, alloy steel, copper, titanium etc.
WSE-315D Technical Data
| Model | WSE-315D |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) | 17 |
| Rated inputpower(KVA) | 11 |
| Open circuit voltage(V) | 78 |
| Rated welding current (A) | 5-315 |
| Pulse Frequency (Hz) | 0.1-20 |
| Duty ratio (%) | 10-90 |
| Cleaning width (%) | 10-90(Adjustment for AC） |
| Rated duty cycle (%) | 60 |
| Dimension L×W×H (mm) | 620×350×750 |
| Net Weight (Kg) |
55 |
