position: 首页 > prodcut > TIG Welding Machine
TIG Welding Machine
|
|

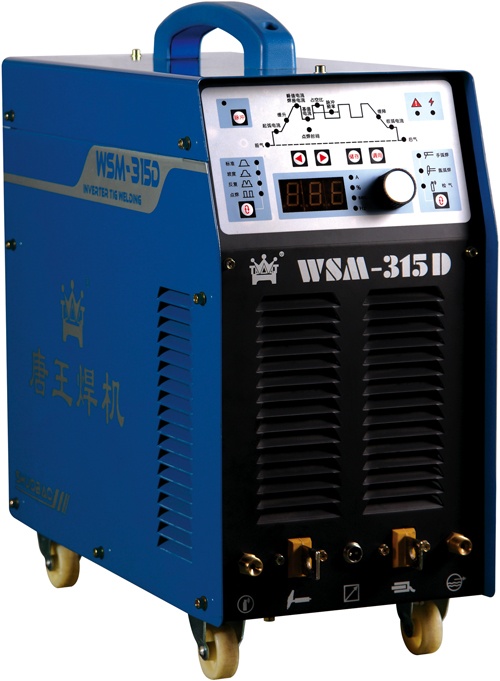

product name: WSM-315D
|
WSM-315D Equipment Features
■ Inverter IGBT technology; portable and light weight.
■ Convenient adjustment thanks to full digital control circuit.
■ Powerful pulse function, strong penetration, stable arc and excellent weld.
■ Easy ignition (even welding current is 5A).
■ MMA function is optional for multipurpose.
■ With good automatic protection function (Over heat, over current, over
voltage).
Area of Application
■ Suitable for all-round welding of the stainless steel, low carbon steel, alloy
steel, copper, titanium etc.
WSM-315D Technical Data
| Model | WSM-315D |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) | 16 |
| Rated input power (KVA) | 10.5 |
| Open circuit voltage (V) | 75 |
| Rated duty cycle (%) | 60 |
| Rated welding current (A) | 5-315 |
| Pulse frequency (HZ) | 0.1-20 |
| Duty ratio (%) | 10-90 |
| Efficiency (%) | 87 |
| Dimension L x W x H (mm) | 570×280×560 |
| Net Weight (Kg) |
32 |
