TIG Welding Machine
|
|

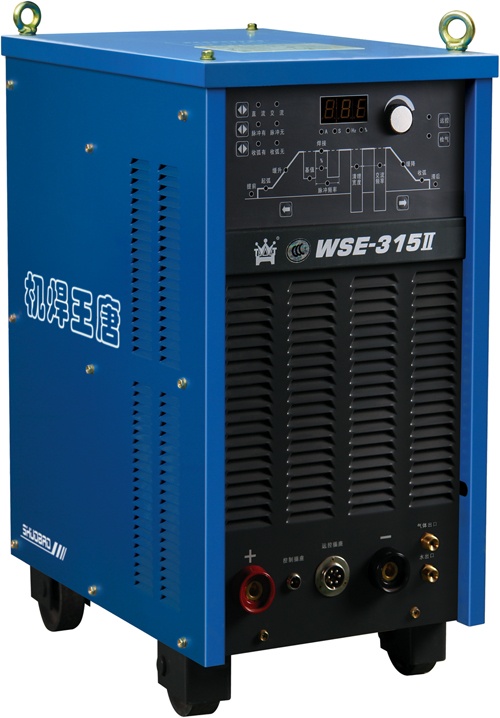

product name: WSE-315
|
Equipment Features
■ AC/DC TIG welding is mixed function, excellent weld, deep penetration and little electrode
consumption.
■ Digital single-chip microcomputer control function, Preset various welding parameters.
■ AC/DC pulse function, realizing both-side molding under single-side welding.
■ Improving the welding quality in ignition arc area thanks to gas pre-flow, primary current and rise time adjustment functionality.
■ Improving the welding quality of liftarc area thanks to adjustable gas post-flow time, current
dropdown time and liftarc current.
■ With the flow, heat and so on many kinds of protection function, And prompt the fault code, and easy to repair.
Area of Application
■ Suitable for the welding of the aluminum, magnesium alloy, stainless steel, low carbon steel, alloy steel, copper, titanium etc.
WSE-315 Technical Data
| Model | WSE-315 |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) |
16 |
| Rated inputpower(KVA) |
10.5 |
| Open circuit voltage (V) | 68 |
| Rated welding current range (A) |
10-300 |
| Pulse frequency (HZ) | 1-20 |
| Duty ratio (%) | 5-95 |
| Cleaning width (%) | 10-50(Adjustment for AC） |
| Rated duty cycle (%) | 60 |
| Dimension L x W x H (mm) | 570×375×750 |
| Net Weight (Kg) |
46 |
