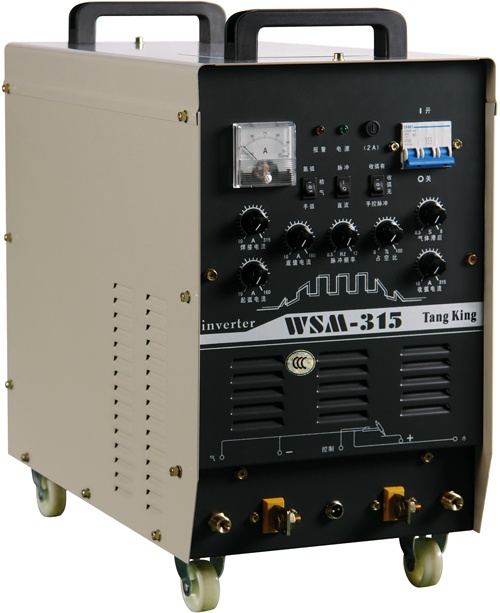

TIG Welding Machine
|
|
product name: WSM-315
|
WSM-315/400/500 Equipment Features
■ By single chip microcomputer control circuit, stable and reliable.
■ Powerful pulse function, excellent weld.
■ When changing of the input voltage, moist environment and arc length,
the welding current keep steady thanks to unique constant current control.
■ Perfect ignition performance.
Area of Application
■ Suitable for all-round welding of the stainless steel, carbon steel, copper,
titanium sheet, etc.
WSM-315 Technical Data
| Model | WSM-315 |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated input current (A) | 16 |
| Rated input power (KVA) | 10.5 |
| Open circuit voltage (V) | 75 |
| Rated duty cycle (%) | 60 |
| Rated welding current (A) | 10-315 |
| Pulse frequency (HZ) | 0.5-12 |
| Duty ratio (%) | 5-95 |
| Efficiency (%) | 87 |
| Dimension L x W x H (mm) | 510×320×550 |
| Net Weight (Kg) |
40 |
