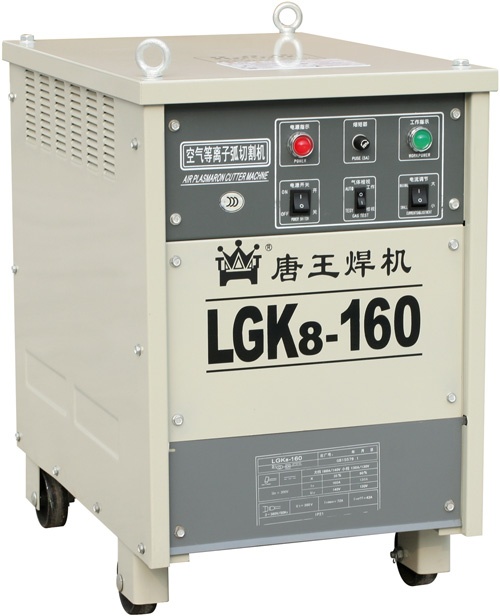

Air Plasma Cutting Machine
|
|
product name: LGK8-160
|
Equipment Features
■ Rapidly cutting, narrow and straight cutting lines.
■ Suitable for various conductive metal cutting.
■ No much effect for voltage fluctuation.
Area of Application
■ Suitable for the cutting of low-carbon steel, stainless
steel, aluminum and non-ferrous metals etc.
LGK8-160 Technical Data
| Model | LGK8-160 |
| Input power supply | Three phase 380V±10% 50Hz |
| Rated input power (KVA) |
48 |
| Rated input current (A) |
72 |
| Rated duty cycle (%) | 60 |
| Open circuit voltage (V) |
300/270 |
| Working voltage (V) | 140/130 |
| Cutting thickness range (mm) |
3-45 |
| Max. cutting thickness (mm) | 50 |
| Air pressure (Mpa) | 0.6 |
| Dimension L x W x H (mm) | 800×470×770 |
| Net weight (Kg) |
150 |
