position: 首页 > prodcut > Air Plasma Cutting Machine

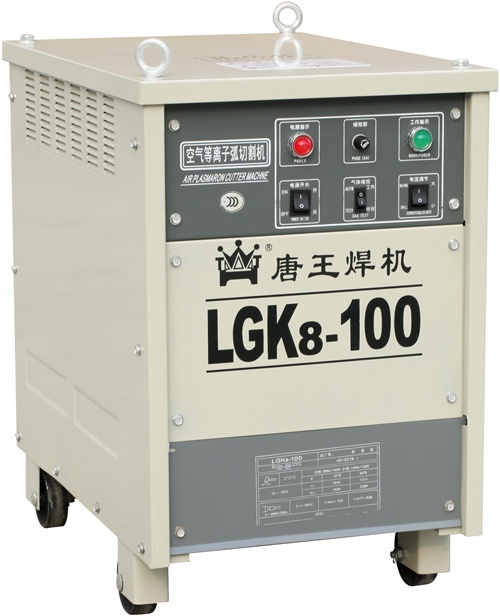

Air Plasma Cutting Machine
|
|
product name: LGK8-100
|
Equipment Features
■ Rapidly cutting, narrow and straight cutting lines.
■ Suitable for various conductive metal cutting.
■ No much effect for voltage fluctuation.
Area of Application
■ Suitable for the cutting of low-carbon steel, stainless
steel, aluminum and non-ferrous metals etc.
LGK8-100 Technical Data
| Model | LGK8-100 |
| Input power supply | Three phase 380V±10% 50Hz |
| Rated input power (KVA) |
25 |
| Rated input current (A) |
38 |
| Rated duty cycle (%) | 60 |
| Open circuit voltage (V) |
270/260 |
| Working voltage (V) | 130/120 |
| Cutting thickness range (mm) |
3-30 |
| Max. cutting thickness (mm) | 40 |
| Air pressure (Mpa) | 0.5 |
| Dimension L x W x H (mm) | 750×450×700 |
| Net weight (Kg) |
120 |
