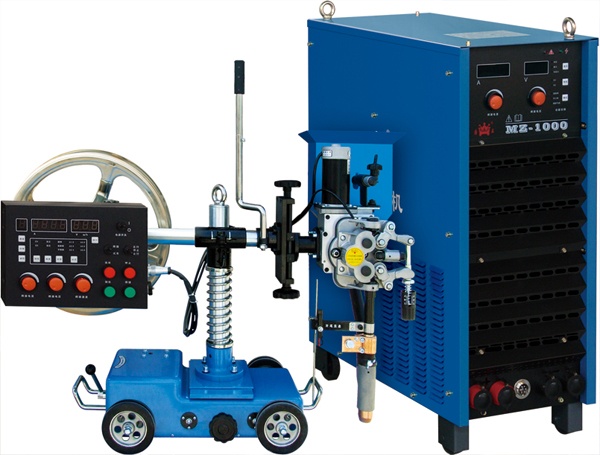

Submerged Arc Welding Machine
|
|
product name: MZ-1000
|
Equipment Features
■ Suitable for manual welding / carbon arc gas gouging / submerged arc welding.
■ Powerful pulse function, the excellent molding of weld joint.
■ Preset and digital display for welding current / voltage / speed and.
■ Suitable for the different welding processes thanks to voltage compensation functionality.
■ Protection function: over-current, over-voltage or under-voltage, phase error, overload, etc.
■ Multi-adjustment of head position.
■ Scraping arcs and designated arcs.
Area of Application
MZ series inverter automatic submerged
arc welding machines are high reliable
products absorbed the domestic and
foreign advanced inverter technology. The
product includes KZ series power supply
and KZ-2 series welding tractor. Applicable
to steel structure welding (δ≥5mm) thanks
to strong resistance functionality of voltage
fluctuation (±15%).
MZ-1000 Technical Data
| MZ-630/1000/1250 | |||
| SCR Submerged Arc Welding Machines | |||
| Technical Data | |||
| Model | MZ-630 | MZ-1000 | MZ-1250 |
| Input power source | 3Φ380V±10% 50Hz | ||
| Rated supply current(A) | 75 | 115 | 130 |
| Rated input capacity（KVA） | 49.3 | 75.7 | 85.6 |
| Rated no-load voltage(V) | 78 | 78 | 78 |
| Output current range(A) | 100-630 | 20-1000 | 250-1250 |
| Rated output voltage(V) | 44 | 44 | 44 |
| Rated output current (A) | 630 | 100 | 1250 |
| Rated duty cycle(%) | 100% | ||
| Efficiency（η） | 0.85 | 0.85 | 0.85 |
| Power factor | 0.9 | 0.9 | 0.9 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Cooling method | Fan cooling | Fan cooling | Fan cooling |
| Dimension LxWxH(mm) | 950X580X850 | 1075X700X970 | 1075X700X970 |
| Net weight(Kg) | 285 | 440 | 460 |
