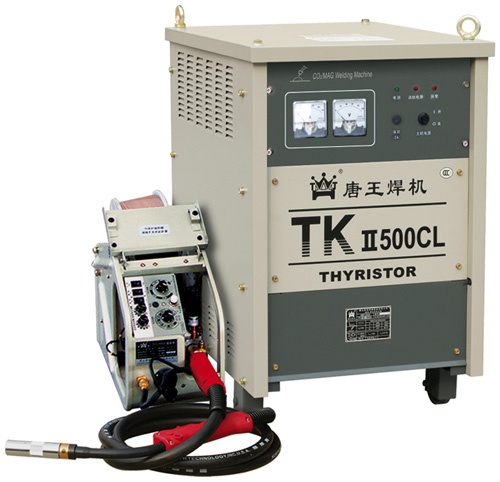

CO2/MAG/MIG Welding Machine

product name: NBC-500CL

Equipment Features

■ Adopt carrier wave control technology instead of control cable and controller
cable, greatly reduce the weight of cable in remote operation, the air duct with
special design reduces the disconnection failure of carrier line.
■ Design according to the demand of dockyard and remote operation. The
function selection and welding code adjustment are completed on the wire
feeder. Facilitate the operation of welder and improve the operation efficiency.
■ The circuit board power supply has self-protection function, which totally
solves the burn-out problem of circuit board caused by short-circuit of
carrier line.
■ The electric control part of wire feeder adopts closed design. The circuit board
adopts epoxy resin encapsulation technology, which can work in open air and
environment with mass dust for a long time, with good waterproof and dustproof
performance.
■ High reliability design in various bad environments.
■ Especially applicable to the welding of ship, high-rise building, bridge and
other large structure.

Area of Application

■ Suitable for all-round welding of carbon steel, low alloy steel, tool steel etc.


NBC-500CL Technical Data

Model
NBC-500CL
Input power source
Three phase 380V±10% 50Hz
Rated input current (A) 48
Rated input power (KVA) 32
Open circuit voltage (V) 65
Rated welding current range (A) 80-500
Rated duty cycle (%) 60
Welding voltage (V) 16-39
Dimension L x W x H (mm) 700×440×770
Net Weight (Kg) 175
