position: 首页 > prodcut > CO2/MAG/MIG Welding Machine
CO2/MAG/MIG Welding Machine
|
|

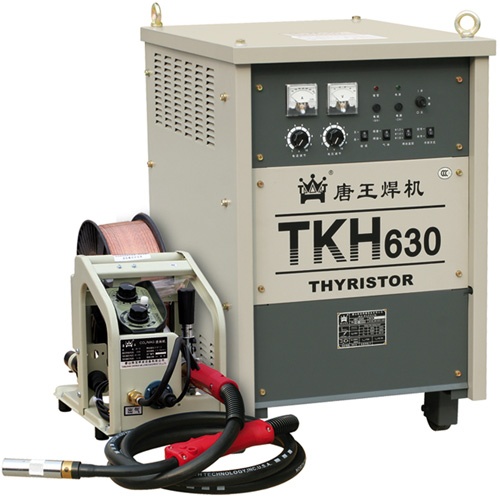

product name: NBC-630TKH
|
Equipment Features
■ CO2 / MMA / GOUGING.
■ Centralized / separate adjustment and switching function.
■ Realizing heavy current, thick wire and high-speed welding thanks to long duty cycle.
■ Especially suitable for metallurgy, building, shipbuilding, machine tool, heavy machinery, steel
structure, etc.
Area of Application
■ Suitable for all-round welding of carbon steel, low alloy steel, tool steel etc.
NBC-630TKH Technical Data
|
Model |
NBC-630TKH |
| Input power source | Three Phase 380V±10% 50Hz |
| Rated input power (KVA) | 46 |
| Open circuit voltage (V) |
76 |
| Welding voltage (V) |
19-44 |
| Output current range (A) |
100-630 |
| Rated duty cycle (%) | 60 |
| Suitable wire diameter (mm) |
1.2/1.6 |
| Dimension L x W x H (mm) | 730×530×880 |
| Net Weight (Kg) |
268 |
