position: 首页 > prodcut > CO2/MAG/MIG Welding Machine
CO2/MAG/MIG Welding Machine
|
|

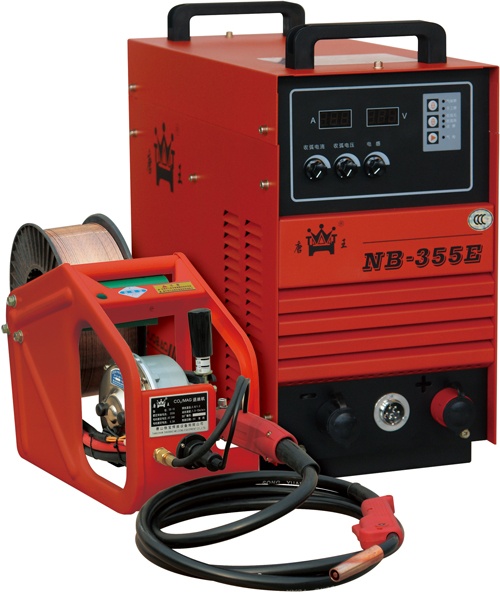

product name: NB-355E
|
|
355 E Equipment Features
1 Inverter IGBT technology;good reliability and high efficiency. 2 High switching frequency small size and light weight.Wire feeder is integrated with power source,easy to move. 3 European type connector for welding torch,easy for installation. 4 Sealed air duct design,overall structure is built with better moisture resistance,drip-proof and dust proof. 5 Energy saving,and strong ability in adapting wide power grid. 6 Easy ignition,low spatter and high deposition rate. 7 Excellent weld,less thermal deformation,especially for thin plate welding. 8 MMA function is optional for multipurpose. |
| NB-355E/500E | ||
| Inverter MIG/MAG/CO2 Welding Machines | ||
| Technical Data | ||
| Model | NB-355E | NB-500E |
| Input power source | 3Φ380V±10% 50Hz | |
| Rated supply current(A) | 22.7 | 41 |
| Rated input capacity（KVA） | 15 | 27 |
| Rated no-load voltage(V) | 70 | 71 |
| Rated output voltage（V） | 32 | 39 |
| Output voltage range（V） | 15-35 | 16-45 |
| Output current range（A） | 60-350 | 80-500 |
| Wire feed rate(M/min) | 2-25 | 2-25 |
| Pre flow time（S） | 0.1-2 | 0.1-2 |
| Post flow time（S） | 0.1-2 | 0.1-2 |
| Burn-back time（S） | 0.1-2 | 0.1-2 |
| Slow wire-feed | 1-10 | 1-10 |
| Wire diameter(mm) | Φ0.8/Φ1.0 | Φ1.0/Φ1.2/Φ1.6 |
| Wire feed type | Push wire | Push wire |
| Torch cooling type | gas | gas |
| Rated duty cycle(%) | 60% | |
| Efficiency（η） | 0.85 | 0.85 |
| Power factor | 0.9 | 0.9 |
| Insulation class | F | F |
| Protection class | IP21S | IP21S |
| Cooling method | Fan cooling | Fan cooling |
| Dimension LxWxH(mm) | 600×280×520 | 600×280×520 |
| Net weight(Kg) | 27 | 33.5 |
