position: 首页 > prodcut > CO2/MAG/MIG Welding Machine
CO2/MAG/MIG Welding Machine
|
|

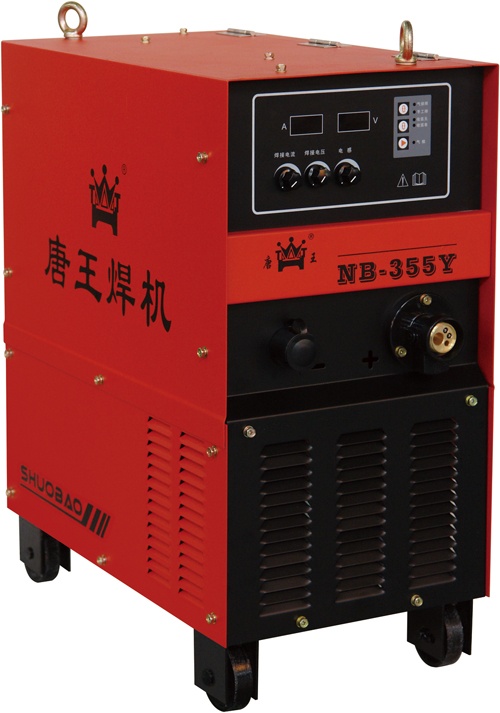

product name: NB-355Y
|
|
■ Inverter IGBT technology;good reliability and high efficiency.
■ High switching frequency small size and light weight.Wire feeder is integrated with power source,easy to move. ■ Overall structure is built with better moisture resistance, drip-proof and dust proof. ■ Energy saving,and strong ability in adapting wide power grid. ■ Easy ignition,low spatter and high deposition rate. ■ Excellent weld,less thermal deformation,especially for thin plate welding. ■ MMA function is optional for multipurpose. ZD7-1000 ZD7-1250 |
| NB-355Y | |
| Inverter MIG/MAG/CO2 Welding Machines | |
| Technical Data | |
| Model | NB-355Y |
| Input power source | 3Φ380V±10% 50Hz |
| Rated supply current(A) | 22.7 |
| Rated input capacity（KVA） | 15 |
| Rated no-load voltage(V) | 70 |
| Rated output voltage（V） | 32 |
| Output voltage range（V） | 15-35 |
| Output current range（A） | 50-350 |
| Wire feed rate(M/min) | 2-25 |
| Pre flow time（S） | 0.1-2 |
| Post flow time（S） | 0.1-2 |
| Burn-back time（S） | 0.1-2 |
| Slow wire-feed | 1-10 |
| Wire diameter(mm) | Φ0.8/Φ1.0 |
| Wire feed type | Push wire |
| Torch cooling type | gas |
| Rated duty cycle(%) | 60% |
| Efficiency（η） | 0.85 |
| Power factor | 0.9 |
| Insulation class | F |
| Protection class | IP21S |
| Cooling method | Fan cooling |
| Dimension LxWxH(mm) | 600X325X720 |
| Net weight(Kg) | 40 |
