MZ/NZC Serious
|
|

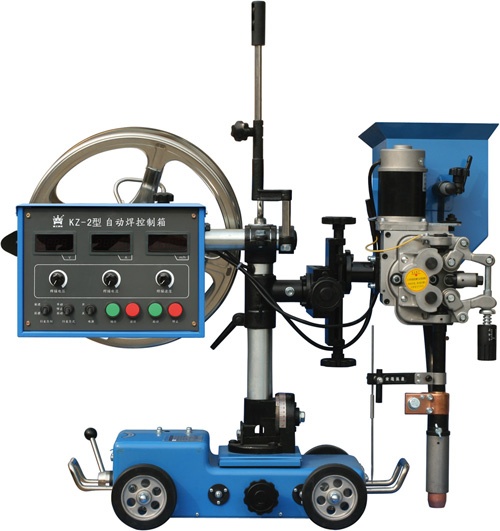

product name: MZ-A
|
MZ-A Equipment Features
■ Adapt to multi-function welding operations, especially for
fillet welding in the flat position and slope welding.
■ Stable tractor travel, wide welding range, suitable to the welding of various Φ2.0～Φ6.0mm welding wires.
■ Realizing multi-location work thanks to the separate installation of wire reel and head, flexible and convenient
adjustment.
■ Realizing bevel travel welding thanks to the vertical column can be set the inclination of 0 ～ 45°.
■ Cross carriage can be moved in longitudinal and transverse, convenient and precise adjustment.
■ Flux-hopper revolution and swing angle are flexible and adjustable.
■ Wire straightener & four-wheel drive ensure the strong and stable wire feeding.
MZ-A Technical Data
| Model | MZ-10-D |
| 行走机构输入电压(V) | 伺服电机DC110V |
| 送丝机构额定电压(V) | DC110V(永磁、激磁任意选配) |
| 送丝方式 | 弧压反馈变速送丝、等速送丝 |
| 焊接速度范围(m/min) | 0.2-1.5 |
| 送丝速度范围(m/min) | 0.25-2.5 |
| 适用焊丝直径(mm)\ | φ2.0/3.0/4.0/5.0/6.0 |
| 立柱倾斜角度 | 0-45° |
| 转臂柱套升降范围(mm) | 130 |
| 转臂柱套绕小车回转角度 | ±90° |
| 适用焊接电源额定值(A) | 630/800/1000/1250 |
| 纵拖板移动距离(mm) | 纵：100 |
| 横拖板移动距离(mm) | 横：100 |
| 机头延转角度 | 45° |
| 机头偏转角度 | 45° |
| 焊剂容量（L) | 6 |
| 丝盘容量(kg) | 25 |
| 外形尺寸(mm) | 1020×480×740 |
| 整机重量(kg) |
58 |
