Air Plasma Cutting Machine
|
|

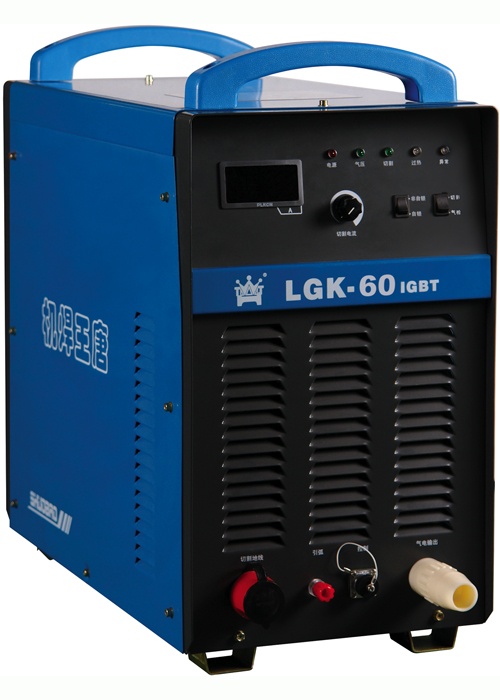

product name: LGK-60
|
Equipment Features
■ IGBT soft switch technology; good reliability, high efficiency and portable.
■ Energy saving thanks to automatic compensation for wide range power grid.
■ 100% duty cycle especially suitable for industry applications with heavy current,
long time working & high-temperature environment.
■ Built-in air pressure and hydraulic pressure sensor can effectively avoid the
accidental damage for cutting torch.
■ Up slop for current greatly reduce the ignition impact, ensure the service life of
the cutting torch accessories.
■ Ignition & arc voltage signal and two-way air supply control are well suited to
CNC and Robot cutting.
Area of Application
■ Suitable for the cutting of low-carbon steel, stainless steel, aluminum and nonferrous
metals etc.
LGK-60 Technical Data
| Model | LGK-60 |
| Input power supply | Three phase 380V±10% 50Hz |
| Rated input power (KVA) |
7 |
| Open circuit voltage (V) | 280 |
| Cutting current (A) | 30-60 |
| Working voltage (V) | 92-104 |
| Rated duty cycle (%) | 100 |
| Air pressure (MPa) | 0.4-0.5 |
| Cutting thickness range (Steel) | 0.3-12 |
| Max. cutting thickness (Steel) | 20 |
| Dimension L×W×H (mm) | 610×310×580 |
| Net weight (Kg) |
48 |
