Carbon Arc Gouging Machine
|
|

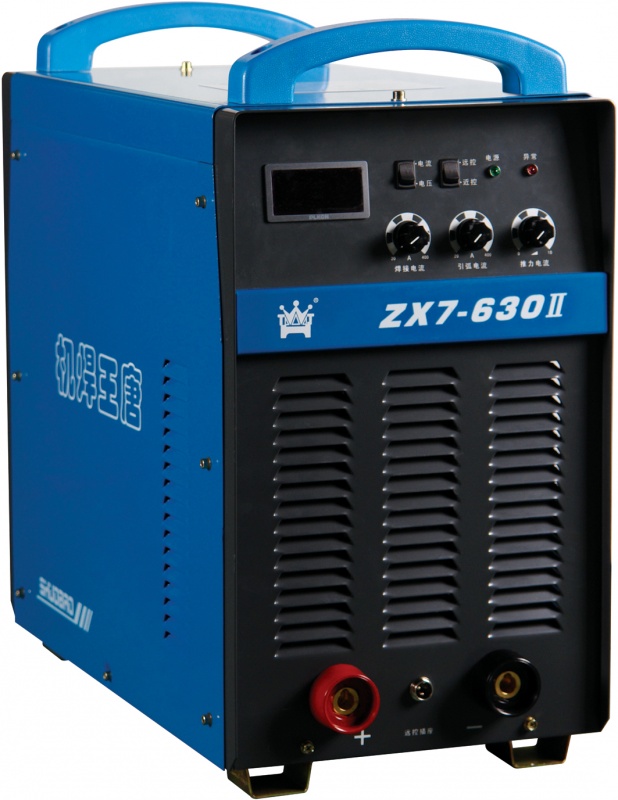

product name: ZX7-630
|
Equipment Features
■ Suitable for MMA / Carbon Arc Gouging.
■ Powerful pulse function, the excellent molding of weld joint.
■ Suitable for the different welding processes thanks to voltage compensation functionality.
■ Protection function: over-current, over-voltage or under-voltage, phase error, overload, etc.
Area of Application
■ Suitable for all-round welding of carbon steel, alloy steel, tool steel etc.
ZX7-630 Technical Data
| ZX7-400/500/630 | |||
| Inverter MMA Welding Machines | |||
| Technical Data | |||
| Model | ZX7-400 | ZX7-500 | ZX7-630 |
| Input power source | 3Φ380V±10% 50Hz | ||
| Rated supply current(A) | 32 | 38 | 52 |
| Rated input capacity（KVA） | 21 | 25 | 34 |
| Rated no-load voltage(V) | 80 | 80 | 80 |
| Output current range(A) | 20-400 | 30-500 | 30-630 |
| Ignition current range | 0-10 | 0-10 | 0-10 |
| Thrust current range | 0-10 | 0-10 | 0-10 |
| Carbon electrode diameter(mm) | Φ6 | Φ6/Φ8 | Φ6/Φ8/Φ10 |
| Rated duty cycle(%) | 60% | ||
| Efficiency（η） | 0.85 | 0.85 | 0.85 |
| Power factor | 0.9 | 0.9 | 0.9 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Cooling method | Fan cooling | Fan cooling | Fan cooling |
| Dimension LxWxH(mm) | 600X320X570 | 600X320X570 | 680X340X570 |
| Net weight(Kg) | 36 | 37 | 52.5 |
