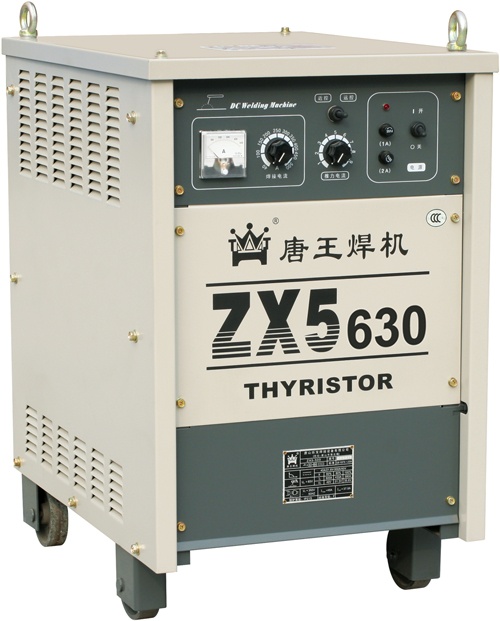

DC MMA Welding Machine
|
|
product name: ZX5-630
|
Equipment Features
■ Strong grid automatic compensation capacity, widely application areas.
■ Excellent dynamic characteristics curve, low-spatter welding, high efficiency and excellent weld.
■ Super widely current adjustment range.
■ Through thrust current adjustment, it can prevent the welding electrode from being adhered to
the work piece.
■ With wireless remote control device, easy current adjustment, especially suitable for long
distance and high-altitude operation.
Area of Application
■ Suitable for all-round welding of carbon steel, alloy steel, tool steel, stainless steel with high
quality.
ZX5-630 Technical Data
| Model | ZX5-630 |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated input current (A) | 70 |
| Rated input power (KVA) | 46 |
| Open circuit voltage (V) | 76 |
| Rated welding current (A) | 80-630 |
| Rated duty cycle (%) | 60 |
| Dimension L x W x H (mm) | 730×530×880 |
| Net weight (Kg) |
268 |
