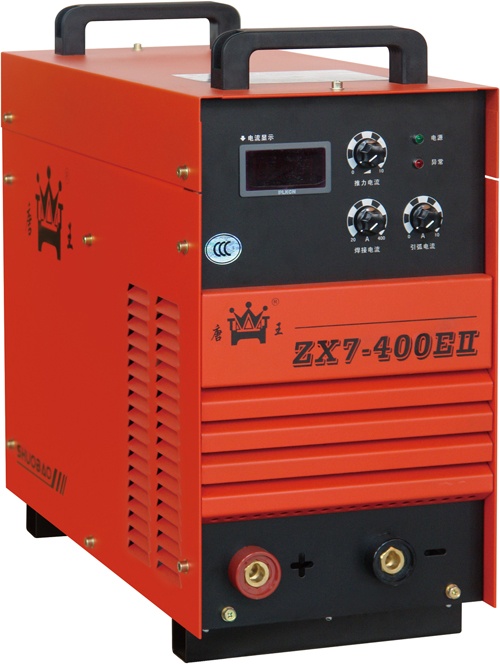

DC MMA Welding Machine

product name: ZX7-400EII

Product Model:
■ Inverter IGBT technology.
■ Energy saving, with strong ability in wide range adaption of power grid.
■ With multiple safety protection function.
■ Digital logic circuit for control parts; High reliability and excellent welding.
■ Good dynamic characteristics, low spatter and easy ignition.
■ Light weight and portable.
■ Wireless remote controller is allowed for current adjustment when long-distance and high altitude working.


ZX7-400E/400EII
Inverter MMA Welding Machines
Technical Data
Model ZX7-400E ZX7-400EII
Input power source 3Φ380V±10% 50Hz
Rated supply current(A) 26 26
Rated input capacity(KVA) 17 17
Rated no-load voltage(V) 80 80
Output current range(A) 20-400 20-400
Ignition current range 0-10 0-10
Thrust current range 0-10 0-10
Rated duty cycle(%) 60%
Efficiency(η) 0.85 0.85
Power factor 0.9 0.9
Insulation class F F
Protection class IP21S IP21S
Cooling method Fan cooling Fan cooling
Dimension LxWxH(mm) 460X260X420 785X280X520
Net weight(Kg) 20 26
