position: 首页 > prodcut > TIG Welding Machine

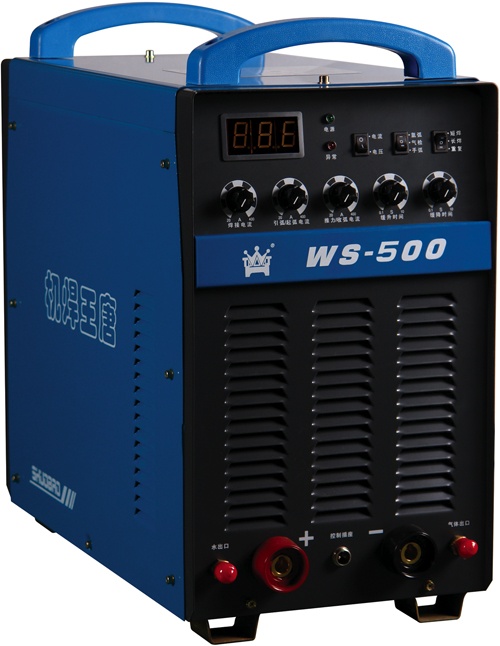

TIG Welding Machine
|
|
product name: WS-500
|
Equipment Features
■ Digital circuit control, stable and reliable.
■ Excellent dynamic characteristics curve, easy arc ignition, low-spatter welding, low noise.
■ Under TIG welding, easy to use thanks to adjustable ignition/liftarc current and down-slope time.
■ Completed automatic self-protection function.
■ With wireless remote control device, easy current adjustment, especially suitable for long
distance and high-altitude operation.
■ Small, light and easy to be moved.
Area of Application
■ Suitable for the welding of carbon steel, stainless steel, copper, titanium, etc.
WS-500 Technical Data
| Model | WS-500 |
| Inputpower source | Three phase 380V±10% 50Hz |
| Rated inputcurrent(A) | 38 |
| Rated inputpower(KVA) | 25 |
| Open circuit voltage(V) | 80 |
| Rated welding current(A) | 30-500 |
| Rated duty cycle(%) | 60 |
| Efficiency(%) | 87 |
| Dimension L x W x H (mm) | 600×310×570 |
| NetWeight(kg) |
45 |
