position: 首页 > prodcut > CO2/MAG/MIG Welding Machine
CO2/MAG/MIG Welding Machine
|
|

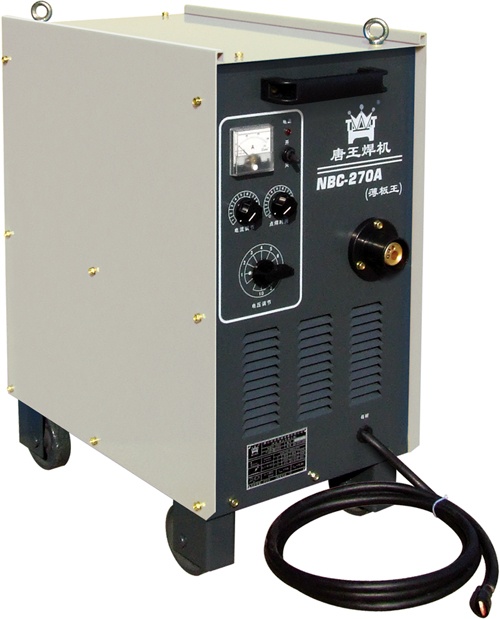

product name: NBC-270
|
Robust, Lower Cost and Excellent Welding Performance
■ Robust and lower cost thanks to Diode technology and simple structure.
■ Excellent welding performance thanks to the optimization design of the
main transformer and reactor.
■ Compact model and Suitable for 0.6mm sheet material.
■ Special loop for wire feeding makes the motor stable and reliable.
■ With spot-welding function; Satisfy the different welding requirements.
Using various protecting gas, such as CO2 / (CO2+Ar).
■ With Europe type interface for welding torch, and simple connection.
■ Small inertia force and wire feeding stability thanks to the high quality
wirefeeder motor.
NBC-270A Technical Data
| Model | NBC-270 |
| Input power source | Three phase 380V±10% 50Hz |
| Rated input current (A) |
14.8 |
| Rated input power (KVA) |
9.8 |
| Maximum excitation voltage (V) |
27 |
| Rated welding current (A) | 60-270 |
| Rated duty cycle (%) |
35 |
| Suitable wire diameter (mm) | 0.8-1.0 |
| Dimension L x W x H (mm) | 570×335×620 |
| Net Weight (Kg) |
87 |
