position: 首页 > prodcut > CO2/MAG/MIG Welding Machine
CO2/MAG/MIG Welding Machine
|
|

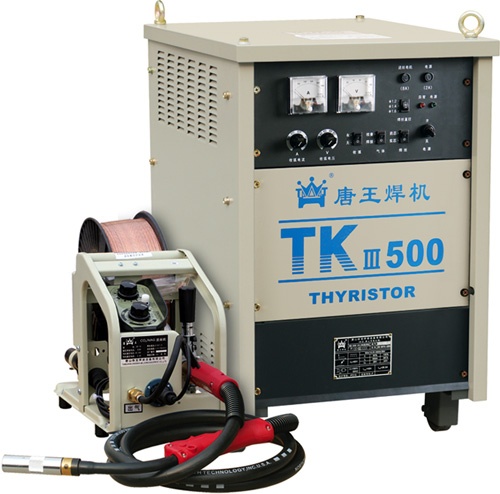

product name: NBC-500TKIII
|
Equipment Features
■ More than 96% ignition is successful thanks to ignition.
■ Automatic arc length compensation function, stable arc
combustion, low spatter, excellent weld.
■ Voltage compensation circuit, guarantee the consistent
of weld joint when voltage variation rate is within ±10%.
■ Ideal dynamic characteristics, strong arc penetration,
deep penetration, high-quality weld joint.
Area of Application
■ Suitable for all-round welding of carbon steel, low alloy
steel, tool steel etc.
NBC-500TKIII Technical Data
|
Model |
NBC-500TKIII |
| Input power source | Three Phase 380V±10% 50Hz |
| Rated input power (KVA) |
32 |
| Open circuit voltage (V) |
65 |
| Welding voltage (V) |
16-39 |
| Rated welding current range (A) |
80-500 |
| Rated duty cycle (%) | 60 |
| Suitable wire diameter (mm) |
1.2/1.6 |
| Dimension L x W x H (mm) | 700×440×770 |
| Net Weight (Kg) |
175 |
