CO2/MAG/MIG Welding Machine
|
|

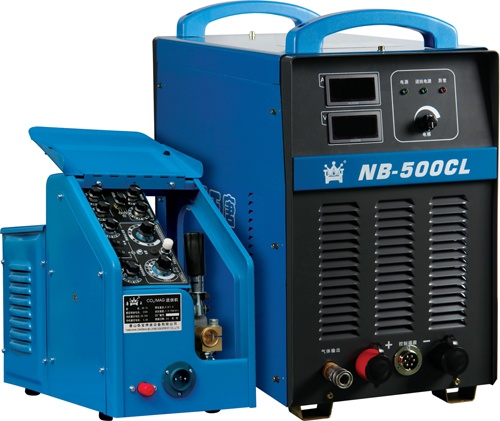

product name: NB-500CL
|
Equipment Features
■ IGBT inverter technology, small and light.
■ Soft switch and passive power factor
correction technology, with high power factor
and efficiency.
■ Adopt carrier wave control technology instead
of control cable and controller cable, greatly
reduce the weight of cable in remote operation,
the air duct with special design reduces the
disconnection failure of carrier line.
■ Design according to the demand of dockyard
and remote operation. The function selection
and welding code adjustment are completed
on the wire feeder. Facilitate the operation of
welder and improve the operation efficiency.
■ The circuit board power supply has selfprotection
function, which totally solves the
burn-out problem of circuit board caused by
short-circuit of carrier line.
■ The electric control part of wire feeder adopts
closed design. The circuit board adopts epoxy
resin encapsulation technology, which can work
in open air and environment with mass dust for
a long time, with good waterproof and dustproof
performance.
■ High reliability design in various bad
environments.
■ Especially applicable to the welding of
ship, high-rise building, bridge and other large
structure.
Area of Application
■ Suitable for all-round welding, including
carbon steel, low alloy steel, tool steel, etc.
NB-500CL Technical Data
| NB-500CL | |
| Inverter MIG/MAG/CO2 Welding Machines | |
| Technical Data | |
| Model | NB-500CL |
| Input power source | 3Φ380V±10% 50Hz |
| Rated supply current(A) | 41 |
| Rated input capacity（KVA） | 27 |
| Rated no-load voltage(V) | 71 |
| Rated output voltage（V） | 39 |
| Output voltage range（V） | 16-45 |
| Output current range（A） | 80-500 |
| Wire feed rate(M/min) | 2-25 |
| Wire diameter(mm) | Φ1.0/Φ1.2/Φ1.6 |
| Wire type | Solid wire/Flux-cored |
| Wire feed type | Push wire |
| Torch cooling type | gas |
| Rated duty cycle(%) | 60% |
| Efficiency（η） | 0.85 |
| Power factor | 0.9 |
| Insulation class | F |
| Protection class | IP21S |
| Cooling method | Fan cooling |
| Dimension LxWxH(mm) | 675X340X580 |
| Net weight(Kg) | 49.5 |
