position: 首页 > prodcut > CO2/MAG/MIG Welding Machine

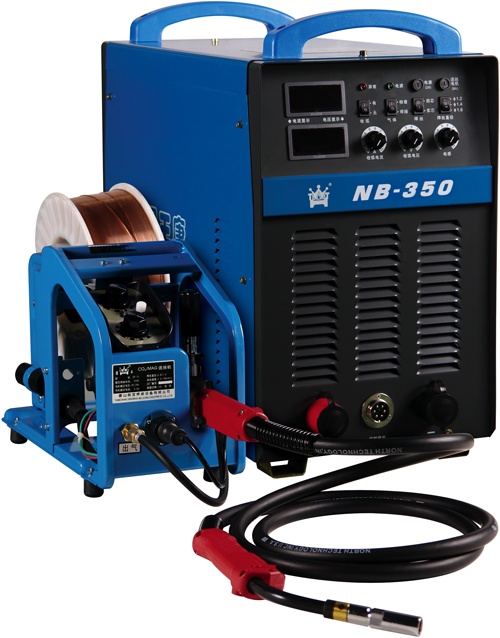

CO2/MAG/MIG Welding Machine
|
|
product name: NB-350
|
Equipment Features
■ IGBT inverter technology, small and light.
■ Adjustable voltage and current, widely adjustment
range, high duty cycle rate.
■ Soft switch and passive power factor correction
technology, with high power factor and efficiency.
■ Waveform control technology, excellent weld, lowspatter
welding and high welding deposition efficiency.
■ Perfect ignition and the next is easier thanks to
eliminating droplet functionality when liftarc.
Area of Application
■ Suitable for all-round welding, including carbon
steel, low alloy steel, tool steel, etc.
NB-350 Technical Data
|
Model |
NBC-350 |
| Input power source | Three Phase 380V±10% 50Hz |
| Rated input power（KVA） |
15.1 |
| Open circuit voltage (V) |
51 |
| Welding voltage (V) | 14-32 |
| Output current range (A) | 60-350 |
| Rated duty cycle (%) | 60 |
| Suitable wire diameter (mm) | 0.8/1.2 |
| Dimension L x W x H (mm) | 572×300×565 |
| Net Weight (Kg) |
53 |
