position: 首页 > prodcut > CO2/MAG/MIG Welding Machine

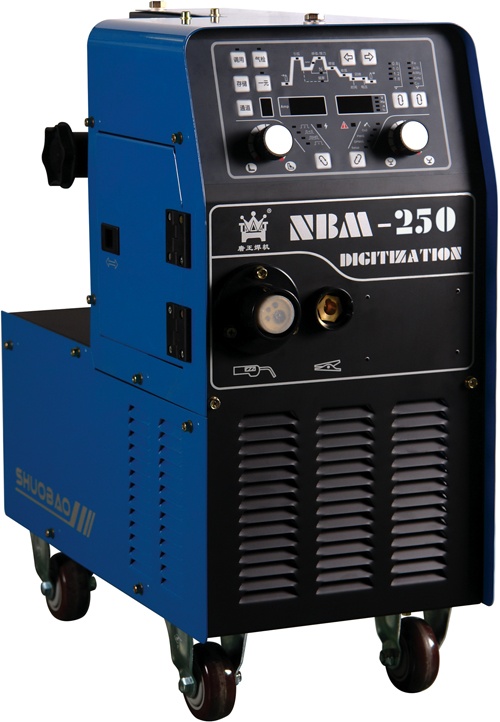

CO2/MAG/MIG Welding Machine
|
|
product name: NBM-250
|
Equipment Features
■ Wire feeder is integrated with power source,
easy to move.
■ European type connector for welding torch,
easy for installation.
■ Overall structure is built with better moisture
resistance, drip-proof and dust proof.
■ DSP digi tal cont rol and f ine cont rol
waveform; one drop one pulse transition.
■ Built-in welding expert database enable
smart parameter setting automatically.
■ Realizing automatic welding with high quality
for various welding materials thanks to the
synergic adjustment.
■ Optimized eliminating droplet functionality
when ignition and crater, suited to spot welding
and short weld.
■ Up to 10 sets of welding specification can be
stored and recalled, make sure high efficiency
and welding quality.
■ Excellent ignition, soft and stable arc, low
spatter and high deposition rate.
■ Excellent weld, easy control for molten pool,
less thermal deformation, especially well suited
for thin sheet welding.
Area of Application
■ Especially suitable for Aluminum thin sheet
welding; mainly applied into home decoration
and automobile refitting etc.
NBM-250 Technical Data
|
Model |
NBM-250 |
|
Input power source |
Single phase 220V±10% 50HZ |
| Rated input capacity (KVA) | 14 |
| Open circuit voltage (V) | 71 |
| Welding voltage (V) | 14-26.5 |
| Welding current (A) | 40-250 |
| Rated duty cycle (%) | 60 |
| Wire diameter (mm) | 0.8-1.0 |
| Dimension L x W x H (mm) | 590×305×680 |
| Net weight (Kg) |
35 |
