position: 首页 > prodcut > CO2/MAG/MIG Welding Machine

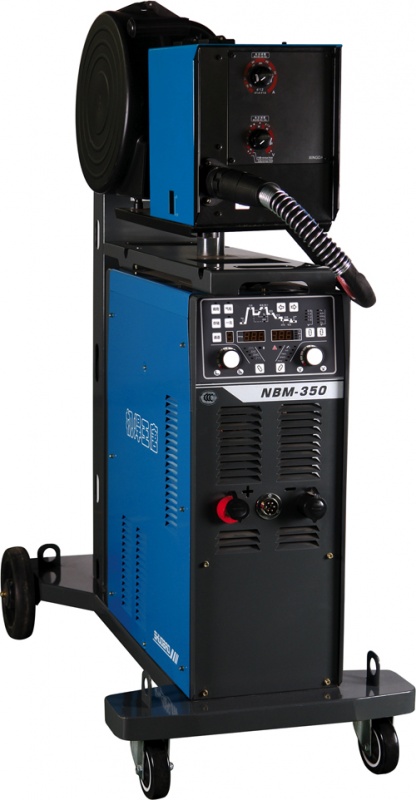

CO2/MAG/MIG Welding Machine
|
|
product name: NBM-350
|
Equipment Features
■ DSP digitalized control; with integrated design.
■ With MMA / MIG / MAG / Pulse MIG / Double Pulse MIG function.
■ Inverter IGBT technology; portable and energysaving.
■ Four-wheel wire feeder ensure the accurate
wire feeding.
■ Suitable for continuous welding with heavy
current.
■ Built-in welding expert database for different
materials.
■ Up to 10 sets welding specification can be
stored and recalled.
Area of Application
■ Suitable material & thickness: Common low
carbon steel, stainless steel, plate thickness ≥
0.7mm. Aluminum, Aluminum & Magnesium alloy, plate thickness ≥3.0mm. Suitable position of welding: flat, overhead, horizontal, vertical and all-round position.
■ Suitable welding wire / rod: φ0.8 ～ φ1.6
solid steel welding wire, φ1.0 ～ φ1.2 stainless
steel welding wire, φ1.2 ～ φ1.6 aluminum and aluminum & magnesium alloy welding wire φ2.0 ～ φ5.0 low-hydrogen alkaline welding rod
and other welding rod. Aluminum welding wire
must adopt Teflon wire-guide tube (φ1.2～φ1.6)
and special contact tube for aluminum welding.
NBM-350 Technical Data
| Model | NBM-350 |
| Input power source | Three Phase 380V±10% 50Hz |
| Rated input capacity (KVA) |
17.5 |
| Open circuit voltage (V) | 71 |
| Welding voltage (V) | 14-40 |
| Output current range (A) | 40-350 |
| Rated duty cycle (%) | 60 |
| Wire diameter (mm) | 0.8-1.2 |
| Dimension L x W x H (mm) | 1070×530×1320 |
| Net weight (Kg) |
70 |
